Holes & Fasteners

CLIENT: SONACA and customers, as external consultant

DESCRIPTION

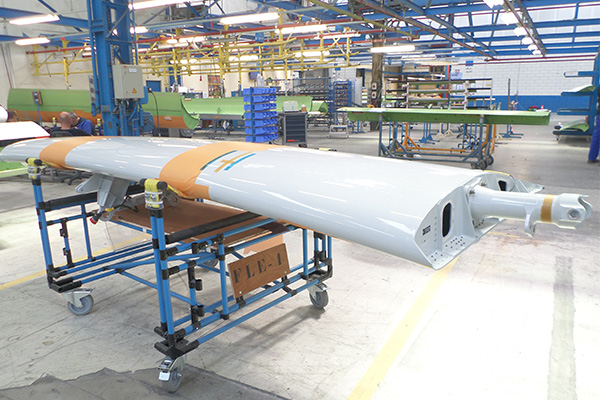

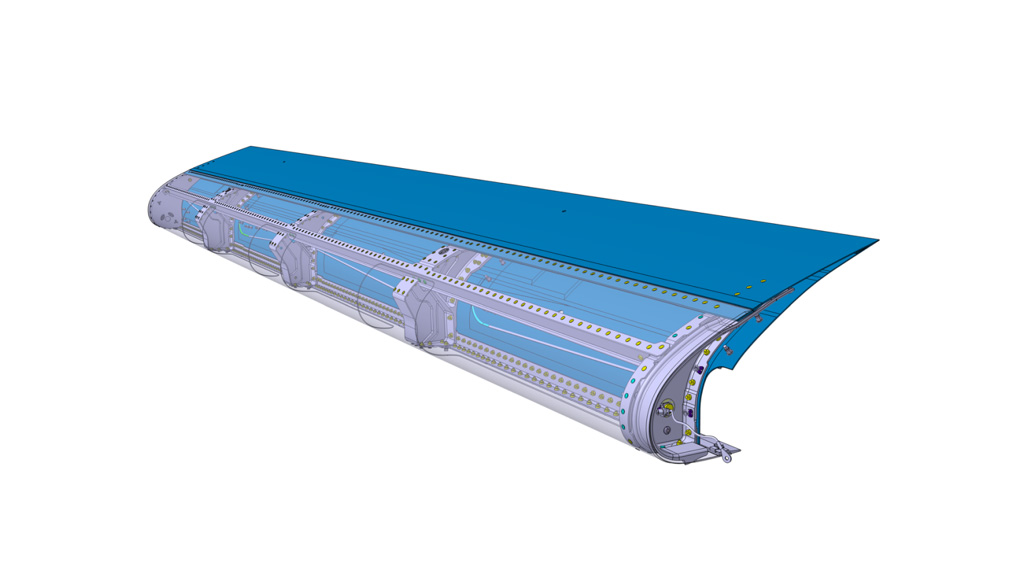

Manually modelling and placing holes and fasteners on 3D models of airplane wings is a tedious task.

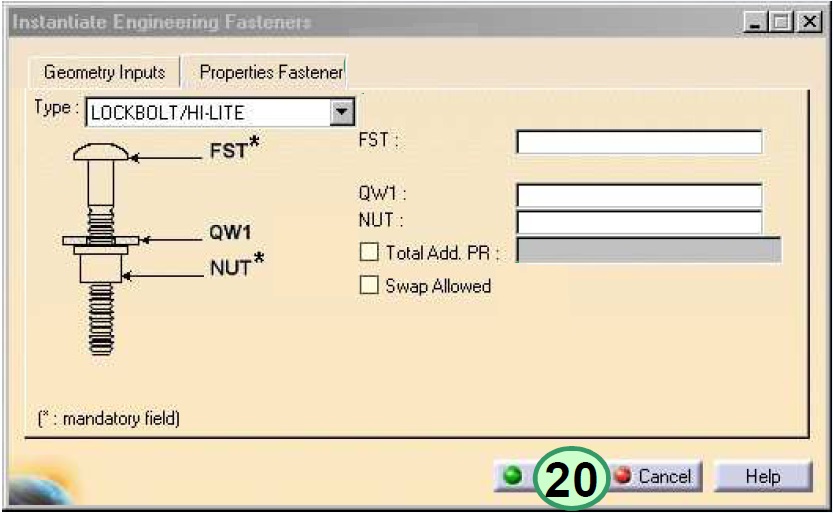

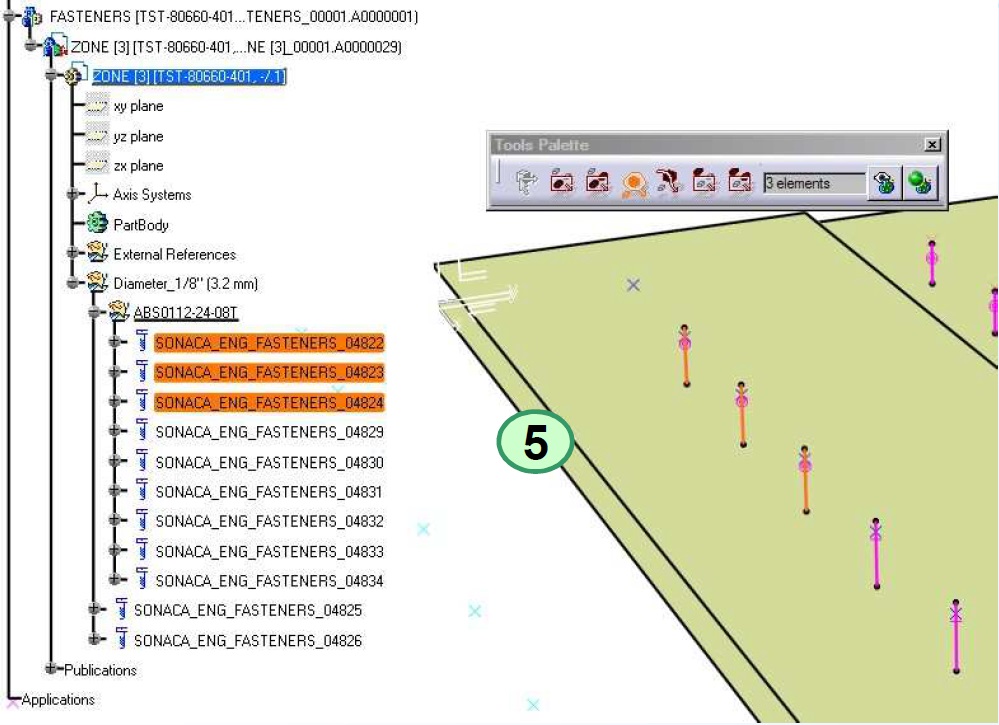

To facilitate and speed up the process, while also providing checks and validation, a set of tools was requested to be developed and integrated in CATIA V5 as a new module.

ROLE

As a CAD Tools Developer, I was responsible for the full development and testing of the different tools, the design of their GUI and their integration in CATIA V5.

---
